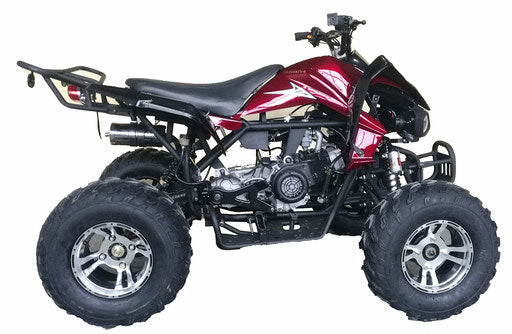

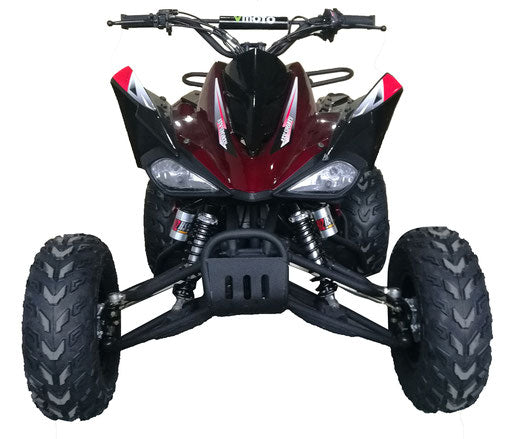

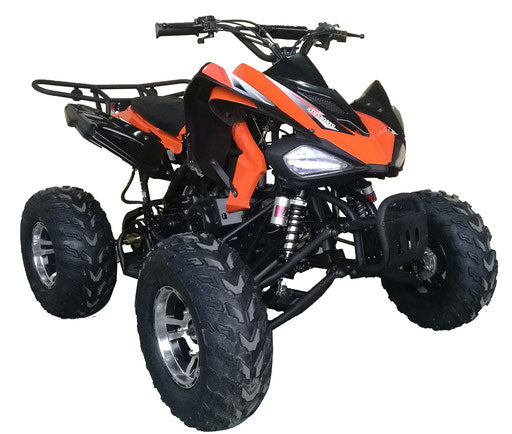

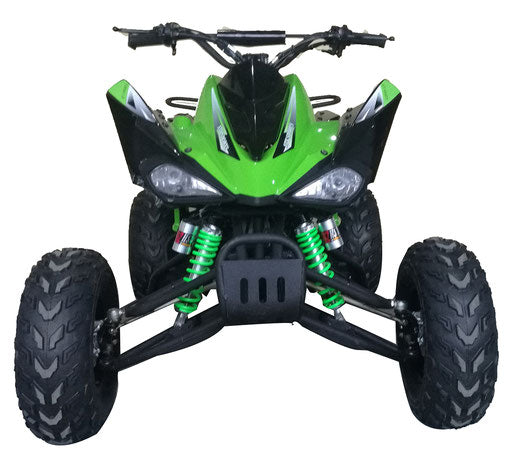

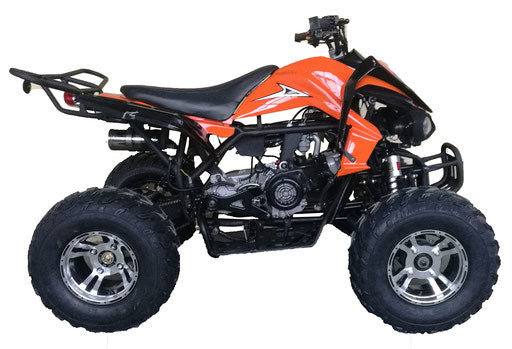

atv COUGAR SPORT 200CC

ENGINE INFO



MODEL NO.                         COUGAR SPORT-200 (169cc)







Engine Type:



169CC, Air cooled, 4-stroke, cylinder, automatic







Dimension







Start Type: Electric start



Battery: 12V/4Ah



Transmission: Chain Drive



G.W.(Lbs.): 374



Engine Gear: Fully Auto with reverse



N.W.(lbs.): 330



Shift Gear: Hand Shift



Max Loading(lbs.): 165



Max Torque: 7.5N.m/5000-5500r/min



Overall Size(inch): 62x44.5x43.3



Wheelbase(inch): 43.52



Carton Size(inch): 59x32.50x31



Ignition: CDI



Seat Height(inch): 4



Fuel Capacity(L): 4.2



Ground Clearance(inch): 12











Chassis







Front Hand Brake: Drum

Rear Foot Brake: Hydraulic Disc



Tire Front: 21x7-10



Tire Rear: 20x10-10



Suspension Front(inch): 13.4



Suspension Rear(inch): 14.2
